專利號: ZL201830275459.1
兼容配件適用于松下

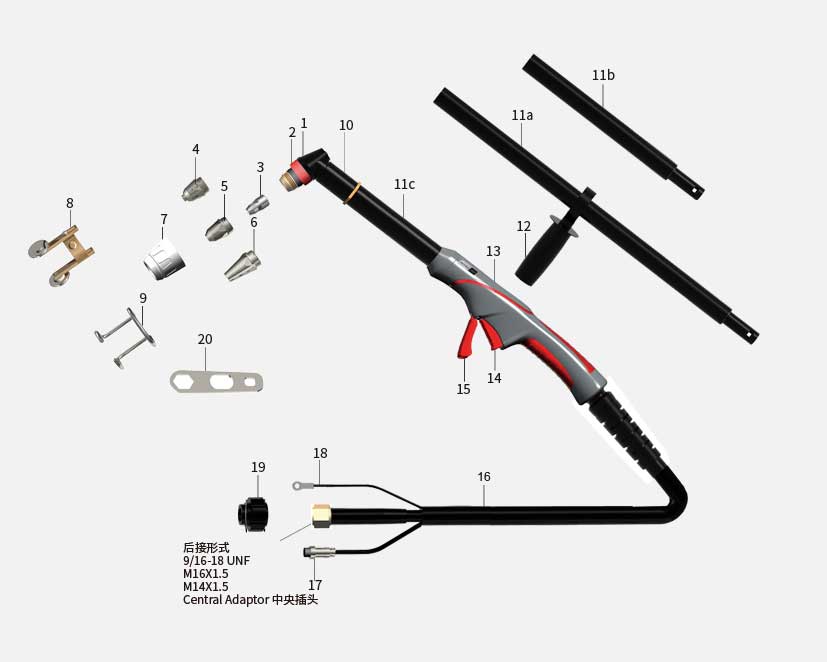

| No. | Order | 描述 | OEM p/n |
| PPA0400.05 | BW P-80JC 加長手柄手用切割槍 60A M14×1.5, 5 米 | ||
| PPA0401.05 | BW P-80JC 加長手柄手用切割槍 80A M14×1.5, 5 米 | ||
| PPA0402.05 | BW P-80JC 加長手柄手用切割槍 100A M14×1.5, 5 米 | ||
| 1 | PPA0410 | BW P-80 手用槍頭 | TKU08103 |
| 2 | PPA0112 | 絕緣環 | TFQ08102 |
| 3 | PPA0131.01 | 電極 | TET02033 |
| PPA0131.02 | 穿孔電極 | ||
| 4 | PPA0132.01 | 噴嘴 1.1mm 40A | TET01110 |
| PPA0132.02 | 噴嘴 1.3mm 60A | TET01310 | |
| PPA0132.03 | 噴嘴 1.5mm 80A | TET01512 | |
| PPA0132.04 | 噴嘴 1.7mm 100A | TSM06626 | |
| 5 | PPA0133.01 | 老式噴嘴 1.1mm 40A | |
| PPA0133.02 | 老式噴嘴 1.3mm 60A | TET01035 | |
| PPA0133.03 | 老式噴嘴 1.5mm 80A | TET01507 | |
| PPA0133.04 | 老式噴嘴 1.7mm 100A | TET01809 | |
| 6 | PPA0132.05 | 氣刨?lài)娮?2.5mm | TET02502 |
| 7 | PPA0334.02 | 鍍銀保護罩 | |
| PPA0334.01 | 普通保護罩 | ||
| 8 | PPA0138 | 導向輪 | |
| 9 | PPA0139 | 隔離簧 | |
| 10 | PPA0422.04 | 連接套 | |
| 11a | PPA0422.01 | 加長桿 (1 米) | |
| 11b | PPA0422.02 | 加長桿 (0.5 米) | |
| 11c | PPA0422.03 | 加長桿 (0.33 米) | |
| 12 | PPA0423 | 手柄 | |
| 13 | PPA0320.02 | FT 手把 ( 紅灰) | |
| 14 | PPA0124.01 | 微動開關 | |
| 15 | PPA0224.01 | 開關保護擋片 | |
| 16 | PPA0150 | 電纜組60A (EPDM 護套) | |
| PPA0151 | 電纜組80A (EPDM 護套) | ||
| PPA0152 | 電纜組100A (EPDM 護套) | ||
| PPA0153 | 電纜組60A ( 夾布橡膠管護套) | ||
| PPA0154 | 電纜組80A ( 夾布橡膠管護套) | ||
| PPA0155 | 電纜組100A ( 夾布橡膠管護套) | ||
| 17 | PPA0171 | 2 芯插頭 | |
| 18 | 258 | 引弧線 | |
| 19 | PPA0170.01 | 螺母套 | |
| 20 | PPA013A | 扳手 |
訂購說明 :
1.鍍銀保護罩適用于帶有保護電路的切割槍, 普通保護罩適用于不帶有保護電路的切割槍?zhuān)?/span>
2.訂購時請說明后接形式；
3.訂購時請說明護套類型: 目前可供選用 EPDM 護套和夾布橡膠護套；
4. 訂購時請說明加長桿長度 , 手柄專用于 1 米加長桿。
BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts,but are parts made for and by BLACK WOLF.
References to PANASOINC machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.
